View Issue Details

Jump to NotesJump to History
IDProjectCategoryView StatusDate SubmittedLast Update
0000239luatexluatex bugpublic2009-06-03 19:092009-06-08 11:11
ReporterKhaled Hosny Assigned Tohhenkel
PrioritynormalSeverityminorReproducibilityalways
Status closedResolutionopen
Target Version0.40.3
Summary0000239: SyncTeX is not working properly
DescriptionSyncTeX output seems to be reversed upside down, upper parts of PDF file refer to lower parts of input file and so on.
Additional InformationTry the attached file in TeXWorks, ctrl+click on any part of the input or output file and compare the results with the same file processed by PPFTeX or XeTeX.
TagsNo tags attached.

Activities

2009-06-03 19:09



test-synctex.tex (712 bytes)

hhenkel

2009-06-03 22:14

manager   ~0000210

Hi Khaled,

thanks, yes it is so (i know), i left it out as i can't test it, i don't have any synctex enabled viewer, and until now :-) i didn't know anybody who has one. I'll try to fix and would be glad if you then can test it...

Regards, Hartmut

Khaled Hosny

2009-06-03 22:20

developer   ~0000211

Last edited: 2009-06-03 22:21

 TeXworks (http://www.tug.org/texworks/ ) is synctex enabled, and I'd gladly do any tests needed.

hhenkel

2009-06-03 23:10

manager   ~0000212

please try svn 2425. should be exact on the point.

Khaled Hosny

2009-06-03 23:49

developer   ~0000213

I think it is working fine now, tested with both the attached test file and more complex Arabic ConTeXt document and every thing seems to be OK so far.

hhenkel

2009-06-03 23:50

manager   ~0000214

many thanks for testing. you did it in PDF mode? does DVI work as well?

Khaled Hosny

2009-06-04 00:31

developer   ~0000215

I don't have a synctex enabled dvi viewer, google search don't seem to find any, so I'm using dvipdfmx to convert the dvi file to test with texworks. The match seems to be shifted down, so what should match the first line in the output matches the 7th line after it, no problem with pdf from pdftex generated dvi file.

hhenkel

2009-06-04 01:06

manager   ~0000216

please try r2426, should be exact now also for DVI (or doubly wrong :-)

Khaled Hosny

2009-06-04 01:50

developer   ~0000217

Last edited: 2009-06-04 01:52

 Now it highlights the correct line in DVI mode too. But "highlight" is shifted to the right of the page. Also in PDF mode with \pardir TRT, the highlight runs to the right side of the page and not confined to line width (but not shifted).

2009-06-04 01:51




Issue History

Date Modified Username Field Change
2009-06-03 19:09 Khaled Hosny New Issue
2009-06-03 19:09 Khaled Hosny File Added: test-synctex.tex
2009-06-03 21:43 Taco Status new => assigned
2009-06-03 21:43 Taco Assigned To => hhenkel
2009-06-03 22:14 hhenkel Note Added: 0000210
2009-06-03 22:20 Khaled Hosny Note Added: 0000211
2009-06-03 22:21 Khaled Hosny Note Edited: 0000211
2009-06-03 23:10 hhenkel Note Added: 0000212
2009-06-03 23:49 Khaled Hosny Note Added: 0000213
2009-06-03 23:50 hhenkel Note Added: 0000214
2009-06-04 00:31 Khaled Hosny Note Added: 0000215
2009-06-04 01:06 hhenkel Note Added: 0000216
2009-06-04 01:50 Khaled Hosny Note Added: 0000217

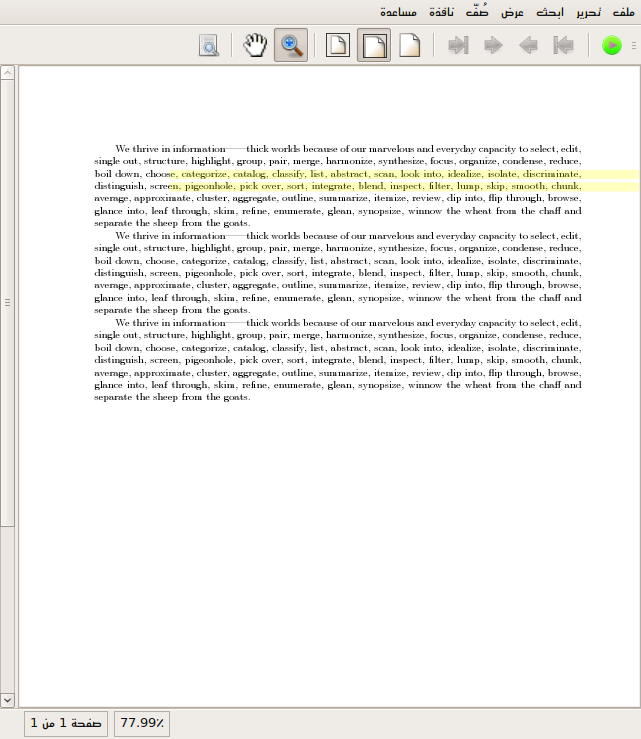

2009-06-04 01:51 Khaled Hosny File Added: test-synctex.png
2009-06-04 01:52 Khaled Hosny Note Edited: 0000217
2009-06-06 11:57 Taco Target Version => 0.40.3
2009-06-08 11:11 Taco Status assigned => closed
